专利号: ZL201730356463.6
枪与配件适用于宾采尔

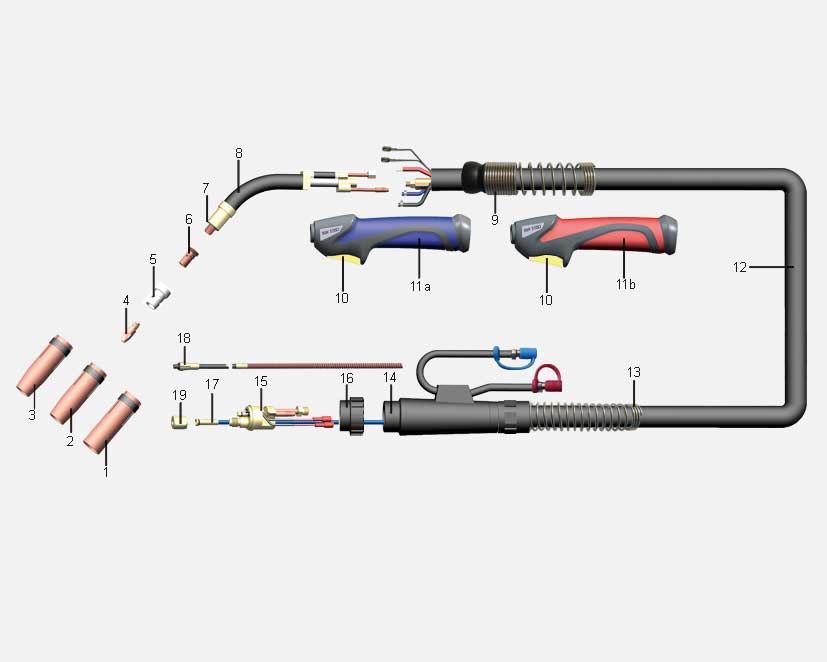

| No. | Order | 描述 | OEM p/n |
| MBZ0900.03 | BW 555D 整枪(BWM-III 蓝灰手把) 3 米 | ||
| MBZ0901.05 | BW 555D 整枪(BWM-III 蓝灰手把) 5 米 | ||
| MBZ0902.03 | BW 555D 整枪(BWM-III 红灰手把) 3 米 | ||
| MBZ0903.05 | BW 555D 整枪(BWM-III 红灰手把) 5 米 | ||
| 1 | MBZ0830.01 | 柱形喷管 ?19mm | 145.0051 |
| 2 | MBZ0830.02 | 锥形喷管 ?16mm | 145.0085 |
| 3 | MBZ0830.03 | 尖形喷管 ?14mm | 145.0132 |
| 4 | MBZ0532.01 | M8x30x0.8 导电嘴, 紫铜 | 140.0114 |
| MBZ0532.02 | M8x30x1.0 导电嘴, 紫铜 | 140.0313 | |
| MBZ0532.03 | M8x30x1.2 导电嘴, 紫铜 | 140.0442 | |
| MBZ0732.02 | M8x30x1.6 导电嘴, 紫铜 | 140.0587 | |
| MBZ0533.01 | M8x30x0.8 导电嘴, 铬锆铜 | 140.0117 | |
| MBZ0533.02 | M8x30x1.0 导电嘴, 铬锆铜 | 140.0316 | |
| MBZ0533.03 | M8x30x1.2 导电嘴, 铬锆铜 | 140.0445 | |
| MBZ0733.01 | M8x30x1.6 导电嘴, 铬锆铜 | 140.0590 | |
| MBZ0834.02 | M8X30X0.8 导电嘴，紫铜铝焊 | 141.0003 | |
| MBZ0834.03 | M8X30X1.0 导电嘴，紫铜铝焊 | 141.0008 | |
| MBZ0834.04 | M8X30X1.2 导电嘴，紫铜铝焊 | 141.0015 | |
| MBZ0834.05 | M8X30X1.6 导电嘴，紫铜铝焊 | 141.0022 | |
| 5 | MBZ0839.01 | 分配器 DMC | 030.0145 |
| MBZ0839.02 | 分配器 陶瓷 | 030.0190 | |
| 6 | MBZ0835.09 | 导电嘴座M8x27 铬锆铜 | 142.0201.10 |
| 7 | MBZ0849 | 绝缘垫片 | 030.0019 |
| 8 | MBZ0943 | 弯管 | 766.0532.1 |
| 9 | MBZ0896 | 球关节电缆支撑弹簧 | |
| 10 | MBZ0195.03 | 开关 | |
| 11a | MBZ0922.02 | BWM-III 手把 ( 蓝灰) | |
| 11b | MBZ0922.01 | BWM-III 手把 ( 红灰) | |
| 12 | MBZ0960.01 | 电缆组, 3 米 | |
| MBZ0960.02 | 电缆组, 5 米 | ||
| 13 | MBZ0897 | 后电缆支撑弹簧 | |
| 14 | MBZ0871 | 接头把套 | 501.2379 |
| 15 | MBZ0872.02 | 中央接头 WZ-2 | 501.0015 |
| 16 | MBZ0170 | 连接螺母 | 500.0213 |
| 17 | MBZ0680.02F | 蓝色送丝软管, 适用焊丝 ?1.0-1.2, 3.5 米 | |
| MBZ0680.02G | 蓝色送丝软管, 适用焊丝 ?1.0-1.2, 5.5 米 | ||
| 18 | MBZ0885.03F | 铝焊丝专用送丝软管, 适用焊丝 ?1.6, 3.5 米 | |
| MBZ0885.03G | 铝焊丝专用送丝软管, 适用焊丝 ?1.6, 5.5 米 | ||
| 19 | MBZ0173 | 螺母M10x1 | 501.0082 |
订购说明 :尤其适用于焊铝、碳钢和不锈钢的脉冲焊接。
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
